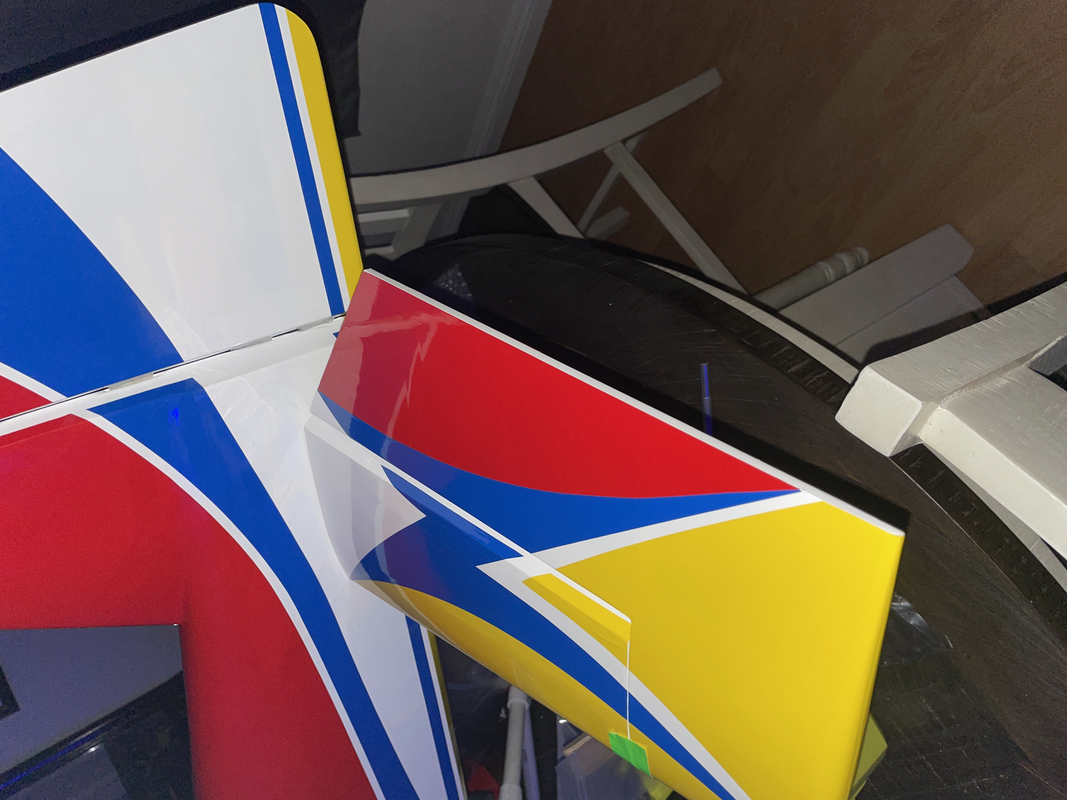

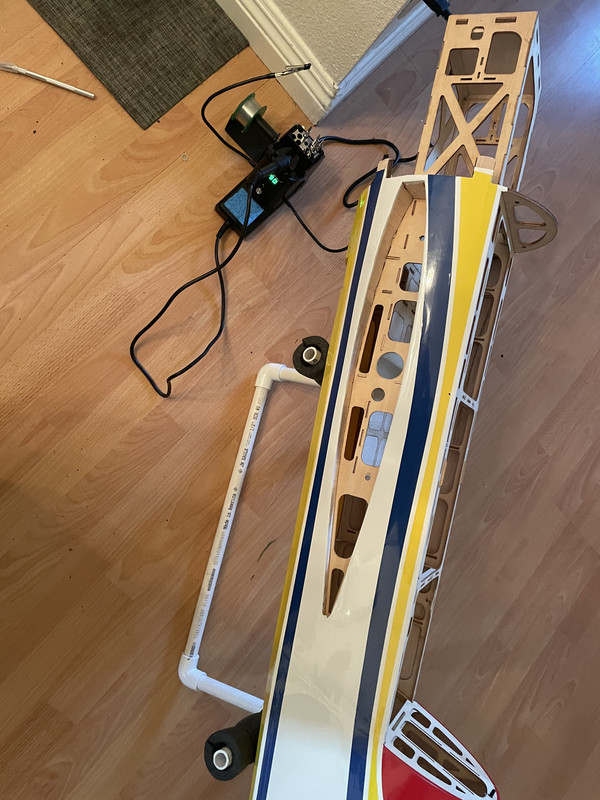

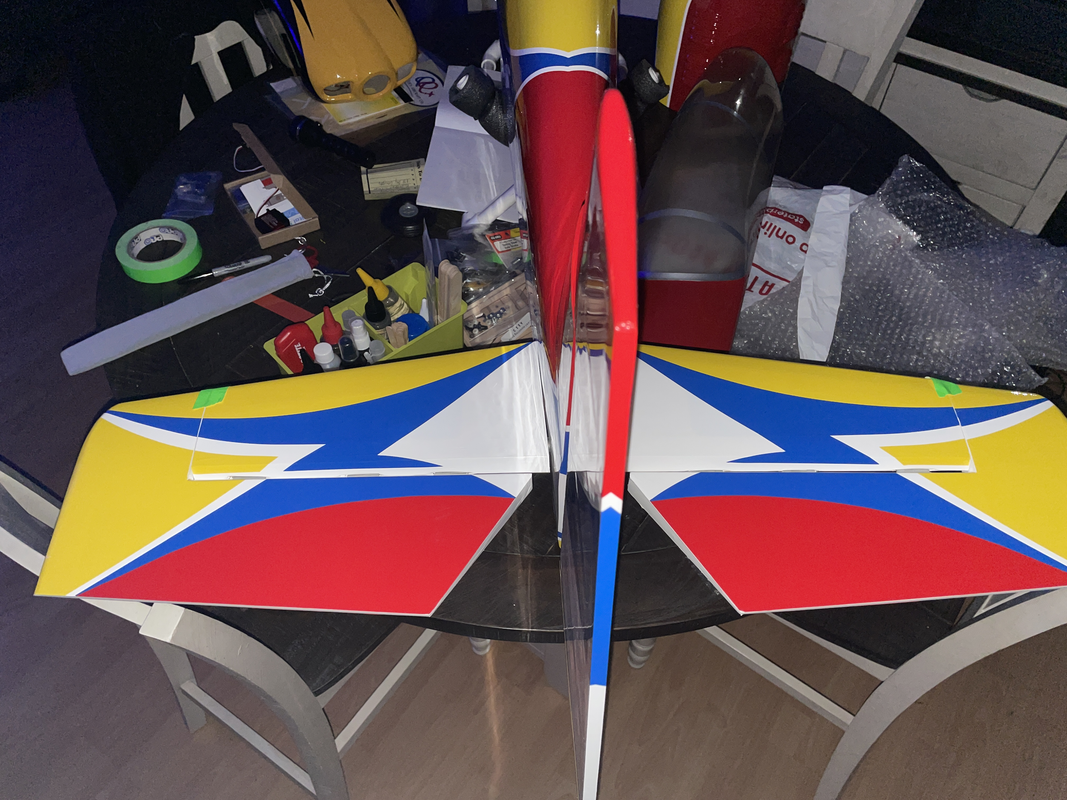

Some pics of my build. I’m contemplating on putting the rudder servo in the tail. I ordered a servo tray to modify if I go that route. My other option is to use the pull/pull style which I’m not a fan of at all. If I do the tail servo it’s going to be a custom job. Not worried about the CG as I think I’ll have enough gear to make it work without having to use lead weights. I think this bird is going to be about a pound and a half heavier than its original weight because of all the gear.
Engine Stinger 60CC with onboard electric start.
2 700ML tanks 1 for fuel and 1 for oil for the smoke machine. They’ll be positioned side by side in front of the wing spar.
Smoke pump which will be placed in front of the tanks.
Electric start switch and 2200 3S battery the switch will be in front of the tanks. With this battery positioned behind the wing spar.
2 servos for throttle and choke located behind the firewall.
2 2S 4000 lipos (they will run parallel above the tanks off to the side this will run the ignition system, surfaces controls, and smoke machine.
5 900 oz of torque surface servos
14 channel Spektrum RX with 3 Sat RX’s and Synapse.
Went with carbon fiber landing gear to lighten the load
Going with a rear exhaust so I don’t have to add a pipe or canister.
4 inch Carbon fiber spinner
22x10 Red propeller
Painting the wheel pants red.
